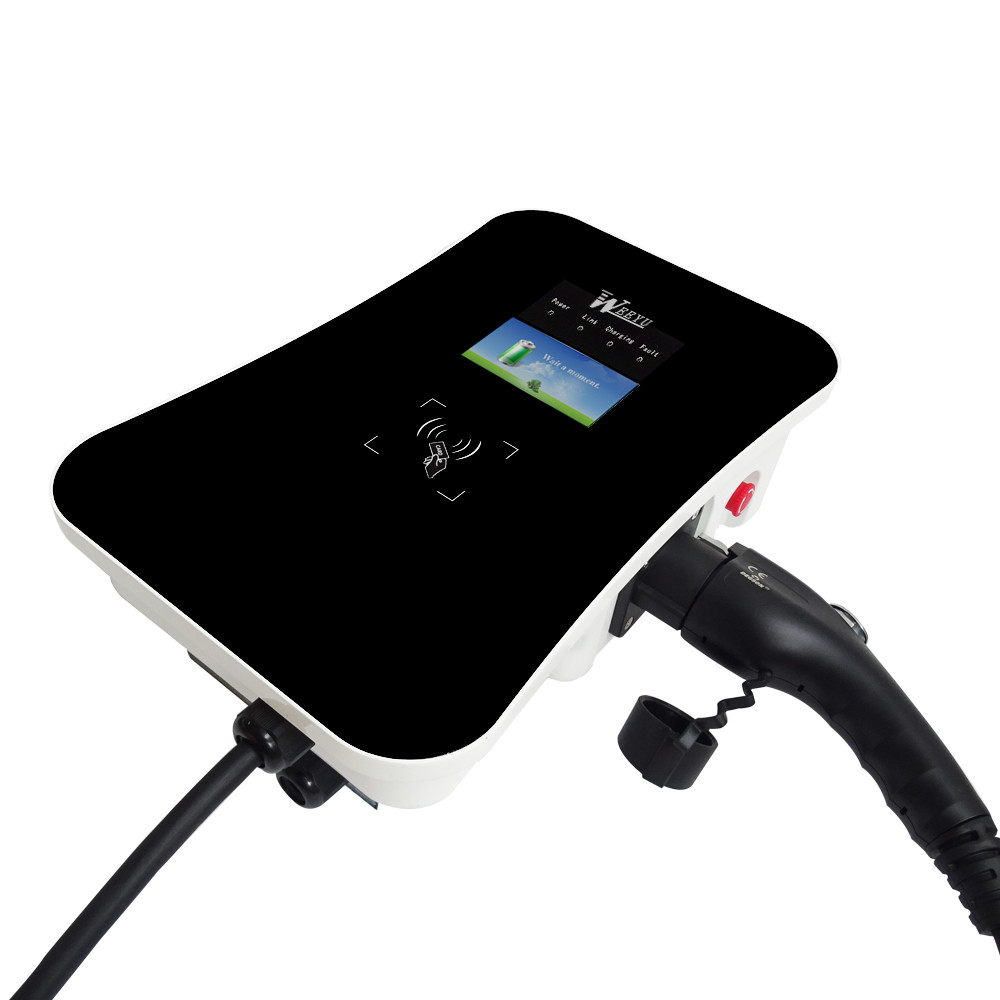

Top Seller Smart EV Charging Station 11kw Public Level 2 Charging
Stations
Lekol-- An industry leading portfolio of offers delivering
sustainable value. We support the highest quality of customer
service, such as pre-sale and after-sales services; Training
service, engineer service and 24-hours online consulting services,
which ensures our worldwide availability of our charging station
and service offers is the best proof of our ling-term engagement.
Lekol mostly does include type 1, type 2, one phase, three phase,
level 2 voltage, 16A, 32A, 40A current, 3.5kw, 7kw, 10kw, 11kw,
22kw charging station of SAE J1172 and IEC 62196-2 standards for
home use(residential) and commercial use which cover most market
needs in most countries.
As a manufacturer of ev charging stations, to survive in this
fierce market, our products are supposed to last long, to be safe,
reliable, affordable and easy to use for everyone so we take
quality, safety, stability, price, service and supports to our
customers of great importance.
LQM3W Series Feature
Smart
OCPP 1.6 or 2.0.1 is enable it to support software and remotely
control the charging sessions.
Safe
Shockproof, over-temp protection, short circuit protection, over
and under voltage protection, over load protection, ground
protection, surge protection.
Durable
It’s built for long-time service, water proof and designed to work
at -30 to 55 °C ambient temperature, never fear the freezing or the
scorching heat.
OEM & ODM
Costumer can customized some features including the color, logo,
functions , casing etc.
Specification
Charging Connector/ plug type | IEC62196-2 /Type 2 | SAEJ1772 /Type 1 |
AC Power input rating | 1 phase 220V±15% | | |
AC Power Output Rating | 3.5KW /16A | 11KW /16A | 3.5KW/16A |
7KW/32A | 22KW/32A | 7KW/32A |
N/A | 43KW/63A | 10KW.40A |
Rated Frequency | 50/60HZ |
User interface & control |
Charging control | Plug and charge √ | RFID card √ | CMS operate √ | |
Display Screen | 4.3inch LCD screen |
Wifi connection | Support √ | OCPP Protocol | 1.6J √ | 2.0.1 √ |
Ethernet Interface | LAN(RJ-45) √ | APP interface | Support √ | |
Protection |
Over Voltage Protection | | Under Voltage Protection | |
Over Load Protection | | Short Circuit Protection | |
Earth Leakage Protection | | Ground Protection | |
Over-temp Protection | | Surge Protection | |
| | Protection ratings | |
Wallbox Charger Mechanical |
Dimension(H×W×D,mm) | 410×260×164 | Weight | 1 phase :9kg 3 phase:12kg |
Charging Cable Length | 5m or 7.5m or customized | Enclosure Material | Front-panel: Tempered Glass, Back-cover: Plate Metal |
LQM3T Mounting Pole(Optional) |
Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg |
Enclosure Material | Metal | | |
F.A.Q.
1. How far can I drive my EV on a single charge?
The driving range of EV is related to the battery power energy.
Generally, 1 kwh of battery can drive 5-10km.
2.Why do I need a charging station?
If you have your own EV and personal parking space, we strongly
recommend that you purchase a charging station, you will save a lot
of charging costs.
3. What should I do if I cannot pull out the charging guns?
For AC EVSE, usually because the vehicle is locked, press the
unlock button of the vehicle key and the adapter can be pulled out；
For DC EVSE, in general, there is a small hole at a position under
the handle of the charging gun, which can be unlocked by inserting
and pulling the iron wire. If still unable to unlock, please
contact the charging station staff.
